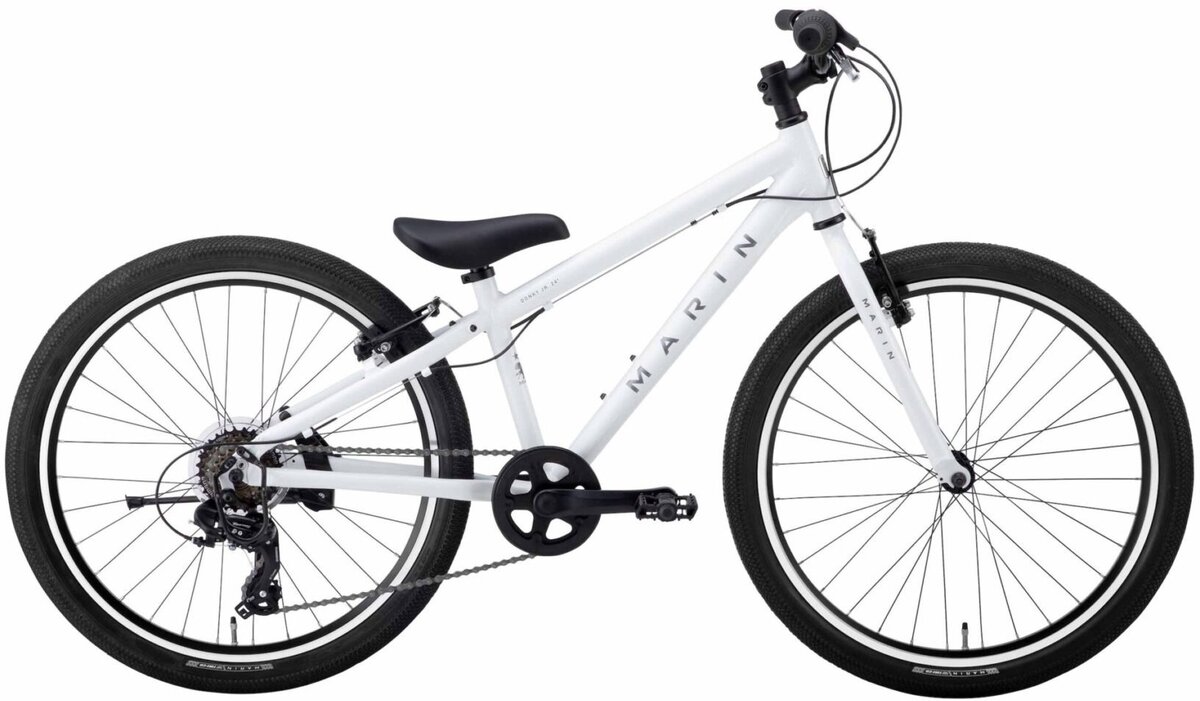

Marin Donky Jr 24
$350.00
Details
The Donky Jr 24 is built around a lightweight aluminum frame and features a dependable Shimano 6-speed drivetrain, kids-sized saddle, grips, and controls, along with the quality components you expect from Marin. Perfect for neighborhood adventures, where each block away from home feels like a mile.
| One Size | |
|---|---|
| A. Reach | 316.6mm |
| B. Stack | 494mm |
| C. Standover | 588mm |
| D. Effective Top Tube | 467.67mm |
| E. Head Tube Angle | 69° |
| F. Head Tube Length | 130mm |
| G. Seat Tube Angle | 73° |
| H. Seat Tube Length | 310mm |
| I. Bottom Bracket Height | 269mm |
| J. Bottom Bracket Drop | 35mm |
| K. Fork Rake/Offset | 40mm |
| M. Wheelbase | 939.16mm |
| O. Chainstay Length | 405mm |
| Handlebar Width | 580mm |
| Stem Length | 60mm |
| Crank Length | 152mm |
Specs
| Frame | Aluminum, 24" Kids |
|---|---|
| Fork | Steel Straight Blade, 1-1/8" Threadless Steerer Tube |
| Rims | Marin Double Wall Aluminum w/Machined Sidewalls |
| Hubs | Steel, 32H |
| Spokes | Black Stainless Steel 14G Spokes, Brass Nipples |
| Tires | Marin/Vee Tire Speedster, 24 x 2.0" |
| Bottom Bracket | Sealed Cartridge Bearing, Square Taper |
| Crankset | Alloy 3-Piece, 152mm; 36t chainring |
| Shifters | Shimano Revo Twist Shift, 6-Speed |
| Rear Derailleur | Shimano Tourney 6-Speed |
| Cassette/Freewheel | Shimano 6-speed, 14-28t |
| Chain | KMC HV500 6-speed |
| Brakes | Tektro, Linear Pull |
| Brake Levers | Tektro Kids Specific Short Reach Alloy |
| Handlebars | Marin Steel MTB |
| Tape/Grips | Kids Specific |
| Stem | Marin Alloy |
| Headset | FSA No. 8B, Threadless, 1-1/8" |
| Seatpost | 27.2mm Steel, Integrated w/Saddle |
| Saddle | Marin Kids w/Integrated Seat Post |
| Pedals | Kids Specific Nylon |
| Accessories & Extras | Rear-Mount Steel Kickstand, Rear Derailleur Guard |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Blue/Black / 24-inch | 843346112767 | 732760001 | 210000009640 |
| Matte Red/Black / 24-inch | 843346112774 | 732761001 | 210000009641 |
